Temperature Rise: 70℃ Max (Rated current)
Step Angle Accuracy: 5%
Ambient temperature: -20℃~+50℃
Insulation Resistance: 100MΩ 500V DC
Dielectric Strength: 1500V AC 1min
Insulation class: B

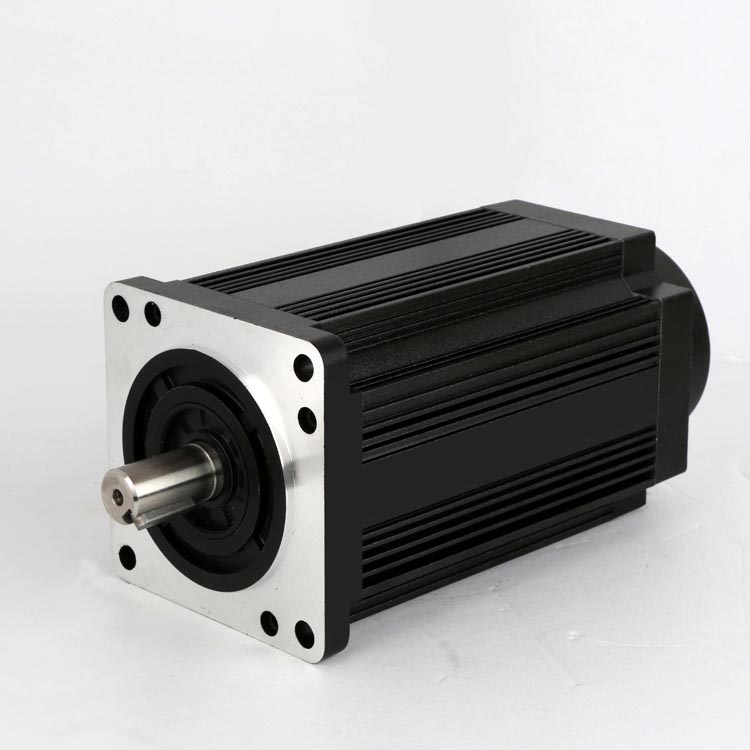

Technical parameters
| Motor Model | StepAngle(°) | HoldingTorque(N.m) | (Drive) Operating Voltage(V) | RatedCurrent(A) | PhaseInductance(mH) | Phase Resistance (Ω) | Rotor inertia(kg.m²) | Weight(kg) | MotorLength (mm) |
| 130BYG350A | 1.2 | 24 | 220 | 6.8 | 16.2 | 0.96 | 26.87 | 12 | 188 |
| 130BYG350B | 1.2 | 28 | 220 | 6.8 | 19 | 1.17 | 33.97 | 15 | 220 |
| 130BYG350C | 1.2 | 35 | 220 | 6.8 | 24 | 1.39 | 41.4 | 19 | 252 |
| 130BYG350D | 1.2 | 50 | 220 | 6.8 | 18.3 | 1.02 | 47.3 | 20.5 | 280 |
| 130BYG350A-X | 1.2 | 22 | 220 | 6.8 | 9.9 | 0.89 | 26.8 | 9.7 | 192 |
| 130BYG350B-X | 1.2 | 28 | 220 | 6.8 | 11.3 | 0.80 | 34.9 | 14 | 238 |
| 130BYG350C-X | 1.2 | 37 | 220 | 6.8 | 13.8 | 0.92 | 39.2 | 15 | 260 |
| 130BYG350D-X | 1.2 | 50 | 220 | 6.8 | 18.3 | 0.99 | 42.5 | 16 | 271 |
